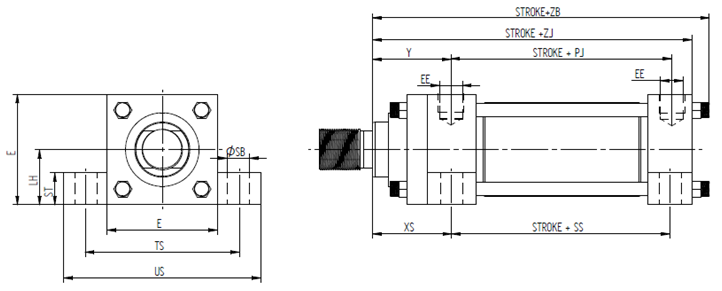

Model 06 Side Lugs Mount (ISO MS2)

Side lug mounts are for moving loads along a flat guided surface as in a carriage along rails.The mounting surface should be flat and parallel to the centerline of the piston rod. The load should be guided to traverse along the centerline of the piston rod.The frame on which the cylinder is mounted must be sufficiently rigid to resist bending moments.With unsupported loads, the bearing must absorb more force. For these applications, the larger available rod is recommended, and stop tubes should be considered.

Bore E EE BSP LH SB ST TS US XS Y Stroke+
PJ SS ZJ ZB
25 40 1/4" 19 6.5 8.5 54 72 33 50 53 72 114 121
32 45 1/4" 22 9 12.5 63 84 45 60 56 72 128 137
40 63 3/8" 31 11 12.5 83 103 45 62 73 97 153 166
50 75 1/2" 37 14 19 102 127 54 67 74 91 159 176
63 90 1/2" 44 18 26 124 161 62 71 80 85 168 185
80 115 3/4" 57 18 26 149 186 68 77 93 104 190 212
100 130 3/4" 63 26 32 172 216 79 82 101 101 203 225
125 165 1" 82 26 32 210 254 79 86 117 130 232 260
160 205 1" 101 33 38 260 318 86 86 130 129 245 279
200 245 1-1/4" 122 39 44 311 381 92 98 165 171 299 336
